Non Metallic Gaskets

Non Metallic Gaskets or Soft Gaskets are gaskets that are easily compressed under a low bolt load. They are composite sheet materials that are suitable for a wide range of general as well as corrosive chemical applications. They are easily available either in sheet form or as gaskets that are cut accurately to any reasonable shape and size. Non metallic gaskets are usually manufactured from materials like arimid fiber, glass fiber, elastomers, teflon (PTFE), compressed asbestos fibre (CAF), flexible graphite etc.
View as

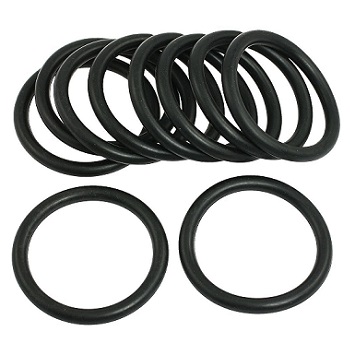

  • Neoprene Rubber O Rings provides good resistence to UV, oxygen and weather applications. Neoprene o rings are commonly used in the refrigeration industry due to excellent resistance to ammonia and freon. Neoprene o-rings offer a range of operating temperatures

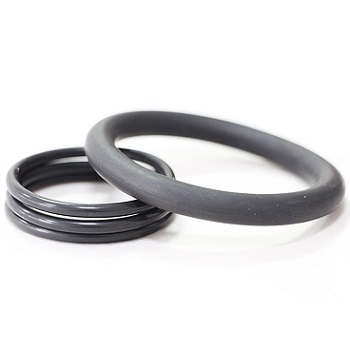

  • EPDM Rubber O Ring have excellent resistance to ozone, weathering and sunlight. They have good heat resistance, low compression set and good flexibility at low temperatures

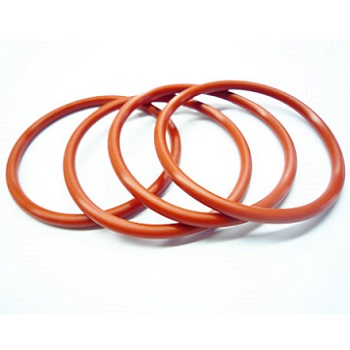

  • Silicon Rubber O Ring offer wide temperature ranges and low temperature flexibility. Silicone is renowned for its retention of flexibility and low compression set characteristics

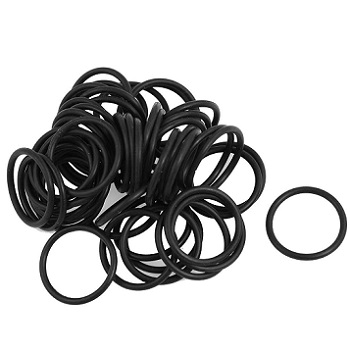

  • Buna-N Nitril O RINGS offer excellent sealing properties and mechanical properties with low cost. Buna and Nitrile O-rings have a basic resistance to common lubricants and are recommended for crude oil, gasoline, propane, petroleum oils and water. Nitrile and Buna O-rings are used in engines, gearboxes, aircraft pumps, and common water applications.

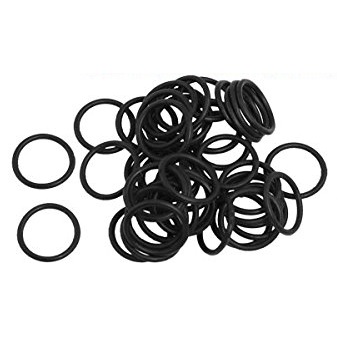

  • Viton O Ring has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics and many organic solvents and chemicals. Low temperature resistance is normally not favorable and for static applications is limited to approximately -26°C (-15°F) although certain compounds are suitable down to -46°C (-50°F). Under dynamic conditions, the lowest service temperature is between -15°C and -18°C (5°F and 0°F). Gas permeability is very low and similar to that of butyl rubber. Special FKM compounds exhibit an improved resistance to acids and fuels

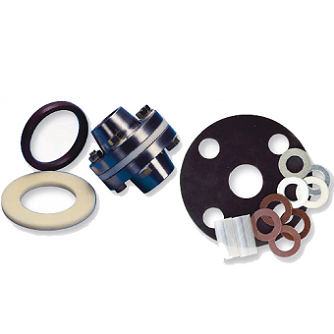

  • Neoprene Faced Phenolic Gaskets have been used as standard ''flat'' isolating gaskets in the oil and gas industries for many years. Soft neoprene rubber sheets are factory applied to both sides of a laminated phenolic retainer providing an effective sealing surface.

Customized Non Metallic Gaskets high quality manufacturing factory in China - Kaxite Sealing. We have fully supply chains for high quality Non Metallic Gaskets.we provide quotations, Welcome to wholesale and buy products from our companies, we will provide you with a low price, discount price list.
