Style KXT 700 Pure Expanded Graphite Gasket

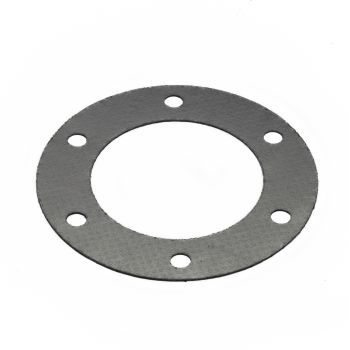

Flexible graphite compound gasket is die-cut from pure graphite plate or reinforced graphite compound plate.

With its excellent resistance to corrosion and high & low temperature, fine elastic resilience and strong strength,

it is a sealing element used for pipes, valves, pumps, pressure vessels, heat exchangers, condensers, etc.

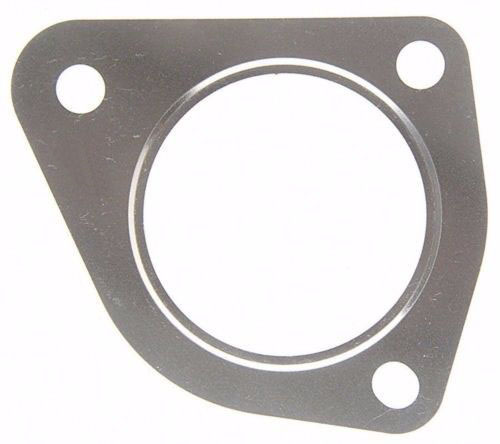

It can also be cut into some complex shapes, like water level gasket with bolt hole flange

Advantages:

• Excellent sealing performance

• Self-lubricating

• Ideal for use with chemicals

• Thermal stability

• Non-fragility

• Corrosion resistance

Application

• Flange surface sealing of pipeline

• Chemical manufacturing industries

• Valve and pump

• Pressure containers

• Heat exchanger

Flexible grafite composite sheet gasket:

Name Construction Pressure(Mpa) Temperature(℃) In Oxidizing Media Non-oxidizing  medium Pure graphite sheet 3 -240-400 -240-1650 Dash high strength sheet 5 -240-450 -10-450(CS) -240-560(SS304) -240-870(SS316) Flat high strength sheet 5 -240-450 -240-560(SS304) -240-870(SS316)
