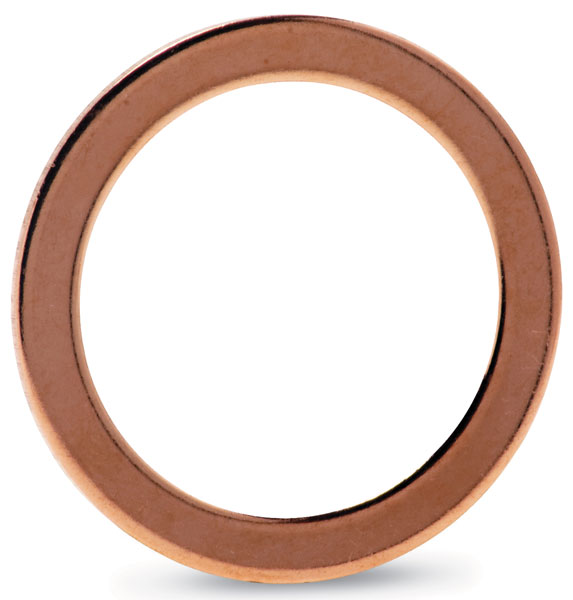

OFHC Copper Gaskets for CF Flanges:
OFHC Copper Gaskets for CF Flanges fit CF flange size of CF16 ~ CF250. Vacuum fittings use a knife-edge cf flange to achieve the high vacuum
seal gasket and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. OFHC Copper Gaskets for CF Flanges are
used for ultra-high vacuum applications. Vacuum fittings are made of High purity, electronic grade oxygen-free copper gasket.
|
Type |
A |
B |
Oxygen-free Copper |
|
|
Order no. |
weight /kg |
|||
|
16 |
21.3 |
16.2 |
7355 |
0.01 |
|
25 |
35 |
25.6 |
7356 |
0.01 |
|
35 |
48.1 |
36.8 |
7357 |
0.02 |
|
50 |
61.6 |
52 |
7358 |
0.02 |
|
63 |
82.4 |
63.6 |
7359 |
0.05 |
|
80 |
99 |
82 |
7360 |
0.07 |
|
100 |
120.5 |
102 |
7361 |
0.07 |
|
150 |
171.3 |
152.5 |
7362 |
0.1 |
|
200 |
222.1 |
203 |
7363 |
0.14 |
|
250 |
273.1 |
254 |
7364 |
0.2 |
Standard size: CF16, CF25, CF35,CF50, CF63, CF80, CF100, CF150, CF200, CF250.
We also manufacture the non-standard copper gasket seals upon your requirement.
